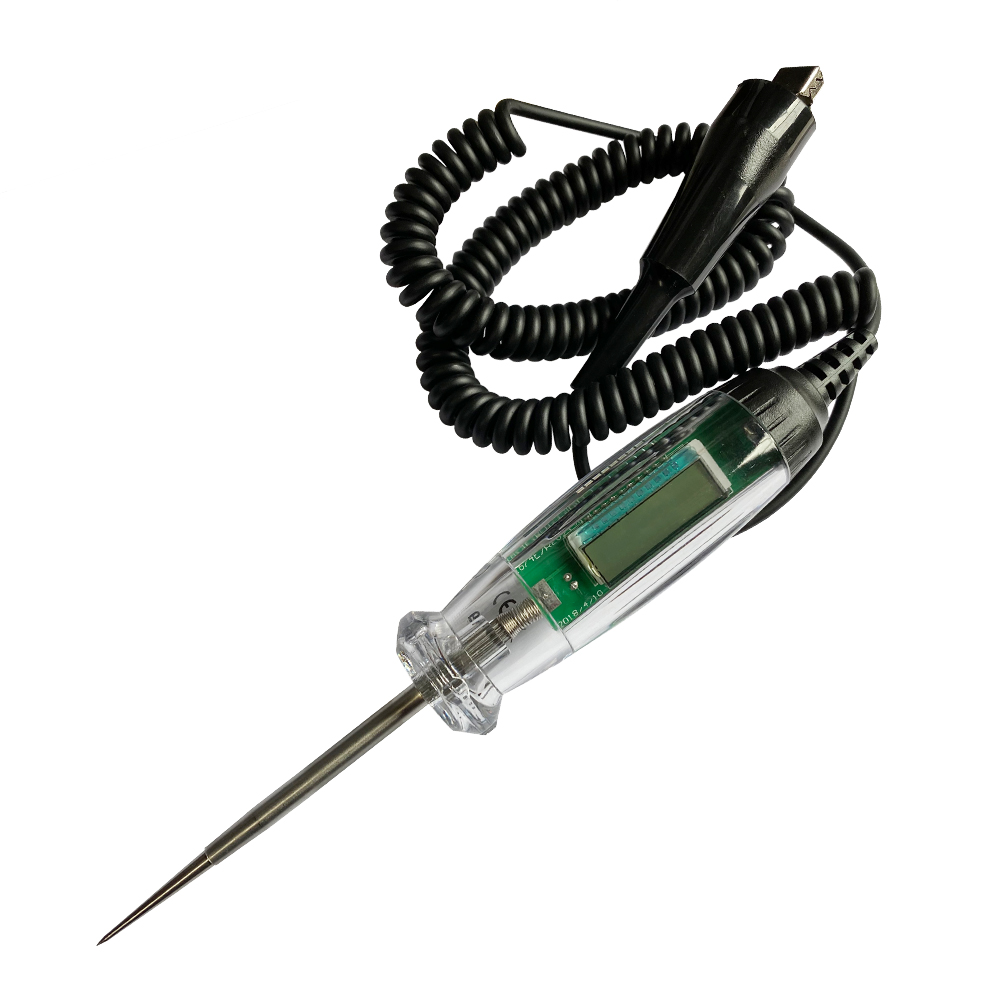

LCD TEST LIGHT 4-60 VDC

Our LCD Test Light 4-60 VDC can be used on 4, 6,12, 24, 48 and 60V. With the LCD Test Light you can test for voltage on both power and ground in DC Circuits and it doesn’t matter which way you test (Positive to Negative or Negative to Positive, the Red and Green LCD light indicator will let your know. This LCD Test Light comes with a coiled cord with a reach of 10 ft. Comes with stainless steel probe.

DISPLAYS VOLTAGE ON LCD SCREEN FROM 4-60V. THE LCD BACK LIGHT INDICATES POWER (B+) AND GROUND (B-)

• Voltage measurement from 4-60 VDC
• Applications: 6, 12, 24, 48 and 60V DC systems
• Testing current: <10mA Display: LCD
• LED indication: Green (-) and Red (+)
• Cable length: 10 feet
• Operating temperature: -10 -50°

Test For Power: 1. Connect lead to a good ground. 2. Touch probe to circuit terminal or wire. 3. LCD should light red and will display voltage in circuit.

Test For Ground: 1. Connect lead to a good power supply. 2. Touch probe terminals, wires or chassis to locate ground. 3. LCD should light green and display voltage at good ground connection.

*PRODUCT RECEIVED MAY VARY SLIGHTLY FROM THE IMAGE SHOWN BUT IS GUARANTEED TO HAVE THE SAME OR BETTER FEATURES
